UAS
In our case, the unmanned aerial system (UAS) consists of the Matrix 600 Pro carrier, the NANO-hyperspec hyperspectral scanner (Headwall) and the Wiris Pro thermal camera (WorksWell). The combined mounting is mounted on a Ronin-MX stabilizer with a load capacity of 4.5 kg, which can also be used for the installation of other sensors.

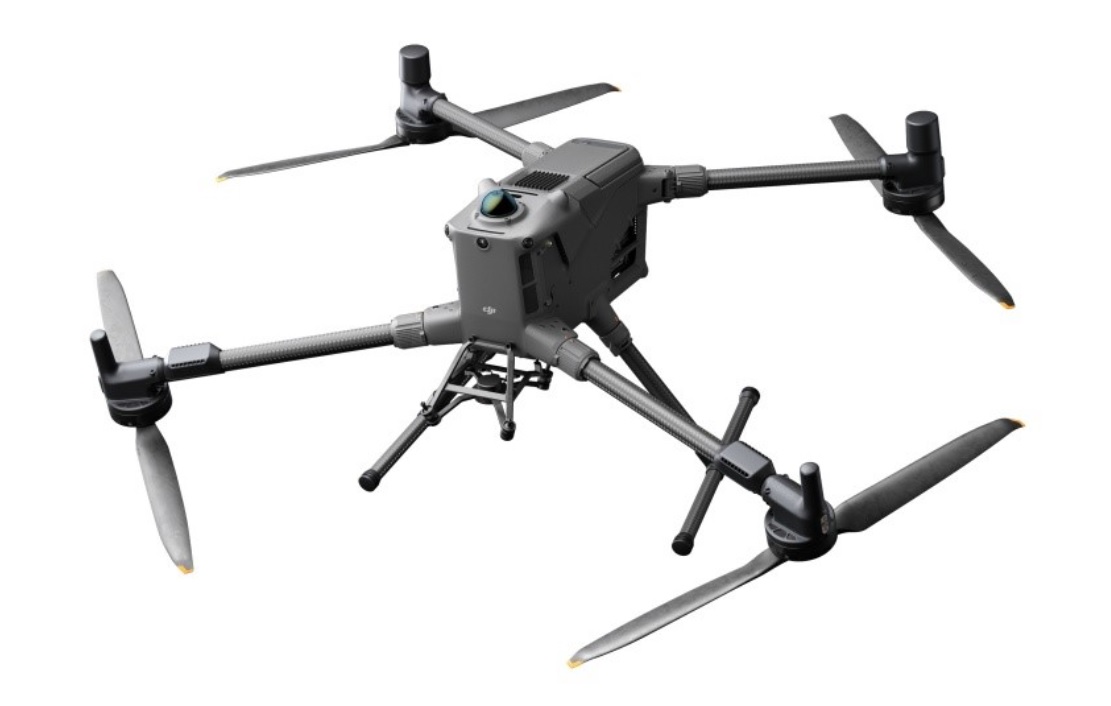

DJI Matrice 400 is a professional unmanned platform designed to carry a variety of sensors such as LiDAR, thermal, multispectral, or hyperspectral cameras. Thanks to its modular design, high flight stability, and support for multiple payloads, it is suitable for mapping, inspections, and environmental monitoring.
The DJI Matrix 600 Pro hexacopter is equipped with an advanced A3 Pro control system, which effectively increases the overall safety of the flight. The system consists of a control unit, GPS-Compass Pro modules and IMU units. It has triple modular redundancy and, together with recognition algorithms, constantly compares sensor data obtained from three sets of GNSS units.
The new intelligent system of A3 modules enables precise control of the multicopter and provides accurate data needed for maximum stable flight. Self-adaptive systems automatically adjust the flight parameters depending on the weight of the load.
WIRIS Pro is designed primarily as an inspection camera. LWIR – microbolometric sensor of the thermal imager has a resolution of 640 × 512 px (in the band 7.5 – 13.5 μm). The RGB camera has a resolution of Full HD (1920×1080 px) and above all offers an unrivaled optical ultrasound up to 10x (ie. field of view 6.9 ° to 58.2 °).
Used software:
- Workswell CorePlayer a Workswell ThermoFormat
- Agisoft MetaShape
| DJI Matrice 400 | |
|---|---|
|
Max flight time: |
59 min (without payload) |
|
Max speed: |
90 km/h |
|
Max wind speed resistance: |
12 m/s |
|
VideoLink: |
DJI O4 Enterprise Enhanced, live viewon monitor- 1080p/30fps, vin CE distance 20 km |
|
Max weight of camera with lens: |
6 000 g |
|
Diagonal span: |
1070 mm |
|
Package size: |
490 x 490 x 480 mm |
|
Weight (with 6x TB47S batteries) |
9740 g |
|
Max take-off weight (recommended): |
15.8 kg |
|
Payload |
|
|
Sensor: |
Nano-Hyperspec, Wiris Pro, Canon 80D, Sony A7 III , Emesent Hovermap |
|
Gimbal: |
Single bottom gimbal / Dual bottom gimbal / Third bottom gimbal connector |
|
|
|
| Matrice 600 Pro | |
|---|---|
|
Max flight time: |
up to 18 min. (depending on payload) |
|
Max speed: |
55 km/h |
|
Max wind speed resistance: |
10 m/s |
|
VideoLink: |
HD/SDI-long range (1 km) 720p/1080p 24-60fps |
|
Max weight of camera with lens: |
6 000 g |
|
Diagonal span: |
1133 mm |
|
Package size: |
525 mm x 480 mm x 640 mm |
|
Weight (with 6x TB47S batteries) |
9.5 kg |
|
Max take-off weight (recommended): |
15.5 kg |
|
Osazení |
|
|
Sensor: |
Nano-Hyperspec, Wiris Pro, Canon 80D, Sony A7 III |
|
Gimbal: |
DJI Ronin MX |
|
|
|
Tab. 1: Technical specification of UAS Matrice 400
Tab. 2: Technical specification of UAS Matrice 600 Pro

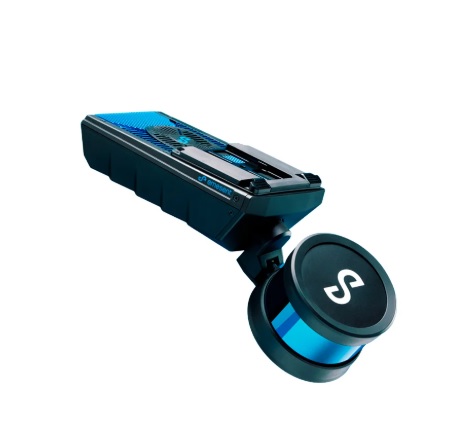

| Emesent Hovermap LiDAR | |
|---|---|
|
System type:: |
SLAM LiDAR |
|
Range LiDAR |
0,5 – 300m |
|
Mapping accuracy: |
±15 mm (normal environment) ±10 mm (indoor / underground) |
|
Drift SLAM |
±0,03 % |
|
Scanning speed: |
up to 640,000 points/s (single return) up to 1,920,000 points/s (multi return) |
|
FOV: |
360° x 290°° |
|
Max mapping speed: |
UAV: ~5 m/s underground: ~2 m/s vehicle: up to 60 km/h |
|
Weight: |
1570 g |
|
Power supply: |
14–54 V, approx. 64 W |
|
Operating Temperature (°C): |
-10 to +50 |
|
|
|
| Headwall Nano-Hyperspec | |
|---|---|
|
Wavelength range (nm): |
400 – 1000 |
|
Spatial bands: |
640 |
|
Spectral bands: |
270 |
|
Dispersion/Pixel (nm/pixel): |
2.2 |
|
FWHM slit image (nm): |
6 |
|
Camera technology: |
CMOS |
|
Bit depth (bits): |
12 |
|
Storage capacity (GB): |
480 (130 min na 100 fps) |
|
Weight without lens, GPS (kg): |
0.5 |
|
Operating Temperature (°C): |
0 až 50 |
|
|
|
Tab. 1: Technical specification of Emesent Hovermap LiDAR
Tab. 2: Technical specification of hyperspectral sensor Nano-Hyperspec
Flight preparation
Matrice during the flight
